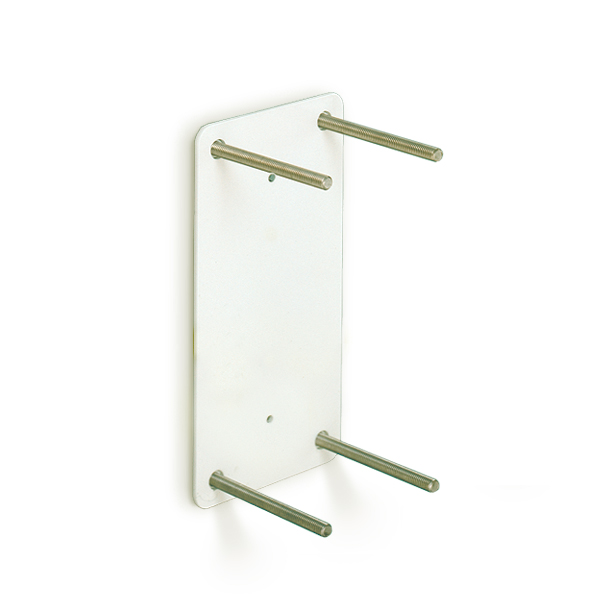

Handicare Backing Plate RectangularHandicare Backing Plate Rectangular Art. No. 0126 501 Backing plate rectangular For secure fixing to a weaker wall The surface area of the wall plate of the Handicare Hinged arm support ensures that the load is well distributed and, most of the time, secure wall mounting can be achieved using a suitable Wall mounting set, which is available as an accessory. When there are concerns about the strenght of the wall, wall mounted products of Handicare can be securely fixed from the back of the wall using special backing plates, which are available as accessories, and existing fixing points. The backing plates are visible from the back side of the wall. The Backing plate rectangular of Handicare is supplied as a complete set for one wall plate. Two sets are required for two wall plates, three sets for three wall plates, etc. No separate fixings are required. Extremely secure fixing for optimum support Provides reliable support for users weighing up to 150 kg Very easy to install on the back of the wall Durable stainless steel Available in neutral white colour only The Backing plate rectangular of Handicare can be used for extremely secure wall mounting of the following Handicare products: all Hinged arm support Backrest LI2705.2004-xx when used in combination with Hinged arm support Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged.

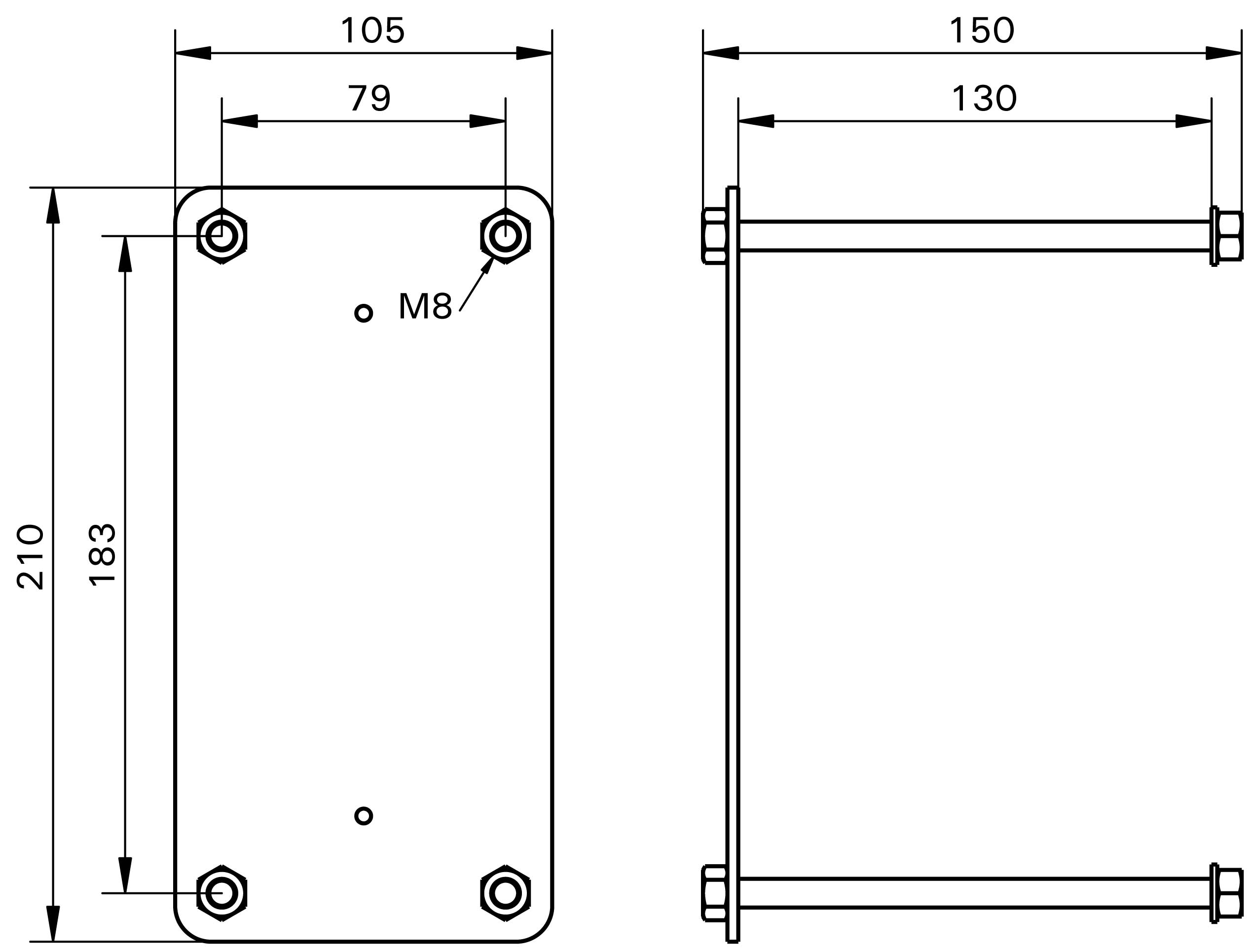

Model specification Documents Model specificationArt. no.LI0126.5014-02NameBacking plate rectangularDescriptionCoated stainless steel, white, complete with pre-welded M8 nuts and matching threaded studs, washers and nutsTotal width105 mmTotal height210 mmMax. user weight150 kgUnit1Material(s)Coated stainless steel DocumentsDocument nameTypeSize User manual Backing plates (multilingual) 962 KB Ergonomic mounting advice EN INT 106 KB Technical mounting advice EN INT 42 KB Care instructions EN INT 170 KB
