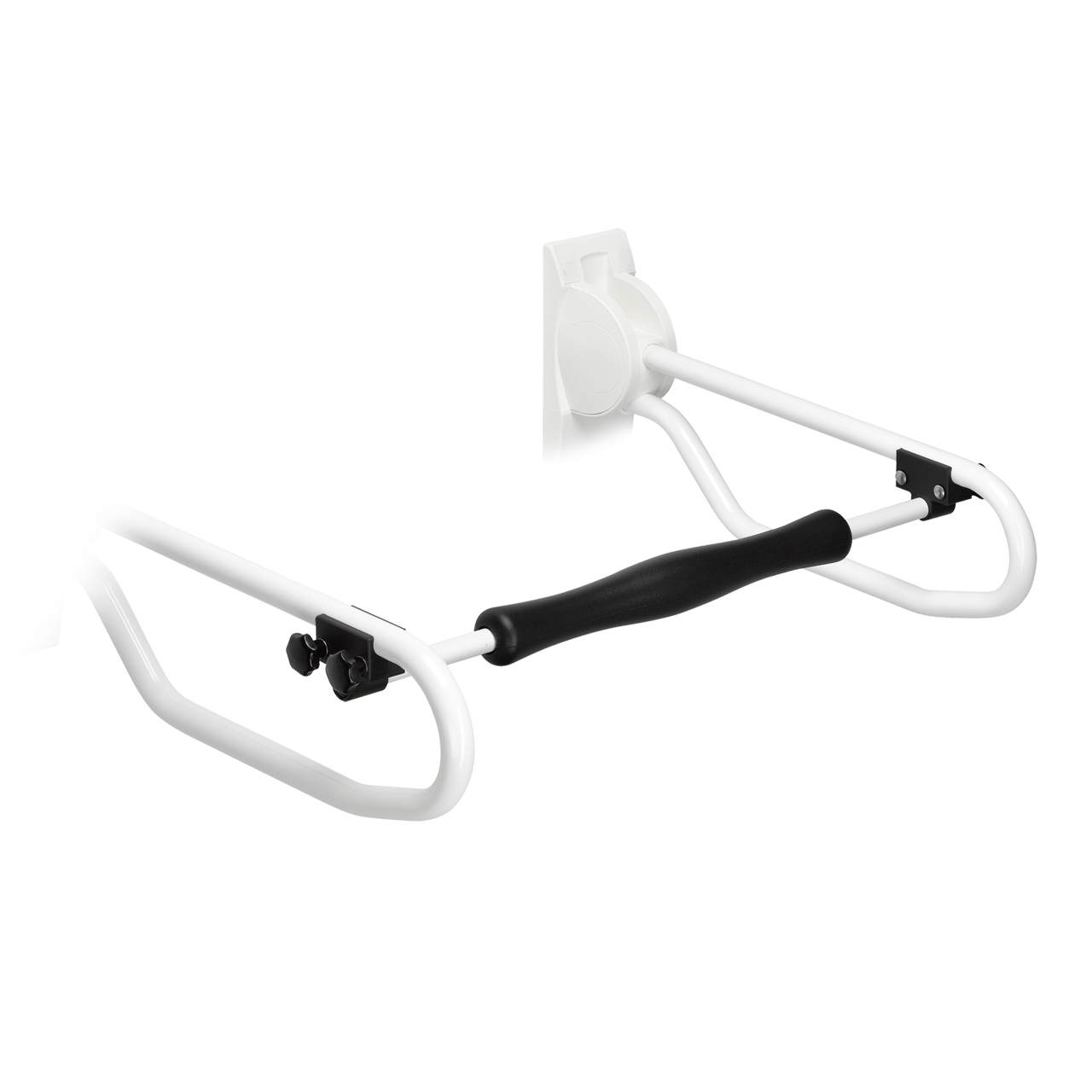

Handicare Front Support BarHandicare Front Support Bar Art. No. 2609 200 Front support bar Accessory for Hinged arm support and Fixed arm support A pair of hinged or fixed arm supports provide support on both sides of the toilet or shower seat but, for example for unstable users and when a user is leaning forward, many users also benefit from having support at the front. Handicare’s Front support bar is used in combination with a pair of hinged or fixed arm supports, at a distance of 630-710 mm from each other, to provide extra support and safety for the user. It is very easy to fit at an adjustable depth in between two arm supports, both for new and existing installations. A lock at each side secures the chosen position. The front support bar is made from aluminium, available in neutral, white colour only, with black, plastic clamps. The bar is covered with durable and washable, black polyurethane (PUR) foam which is molded to the contours of the user’s thighs and hands. 5 years warranty Send a messageName*Email* Country*MessageEmailThis field is for validation purposes and should be left unchanged.

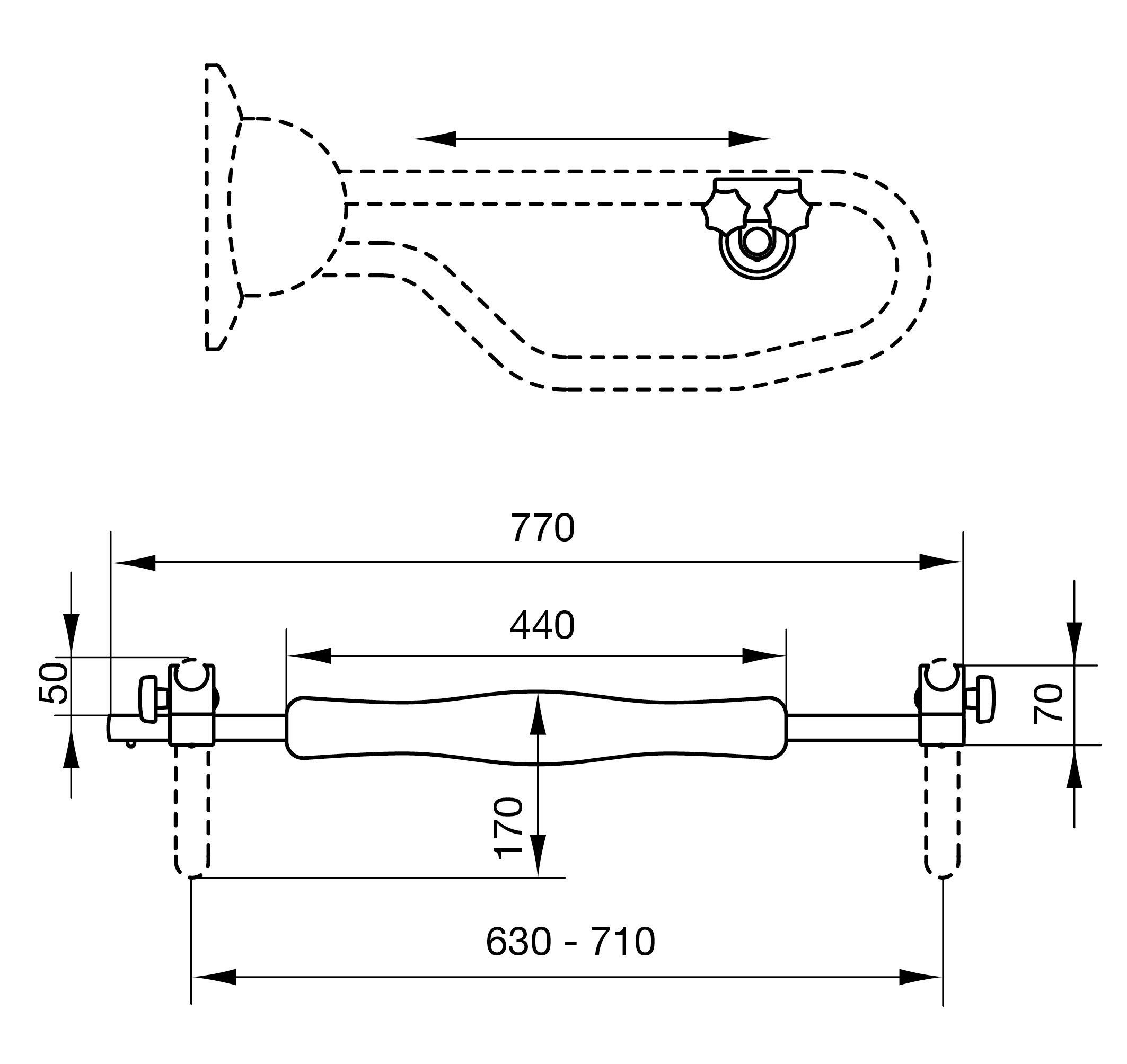

Model specification Documents Model specificationArt. no.LI2609.2003-02NameFront support barDescription770 mm, adjustable length, for all variants of Hinged arm support and Fixed arm supportTotal length770 mmMax. user weight150 kgUnit1Material(s)Coated aluminium/polyurethane (PUR) foam DocumentsDocument nameTypeSize Technical Drawings Accessory For Arm Supports Front Support Bar EN 107 KB User manual Front support bar (multilingual) 834 KB Ergonomic mounting advice EN INT 106 KB Technical mounting advice EN INT 42 KB Care Instructions EN INT 170 KB
