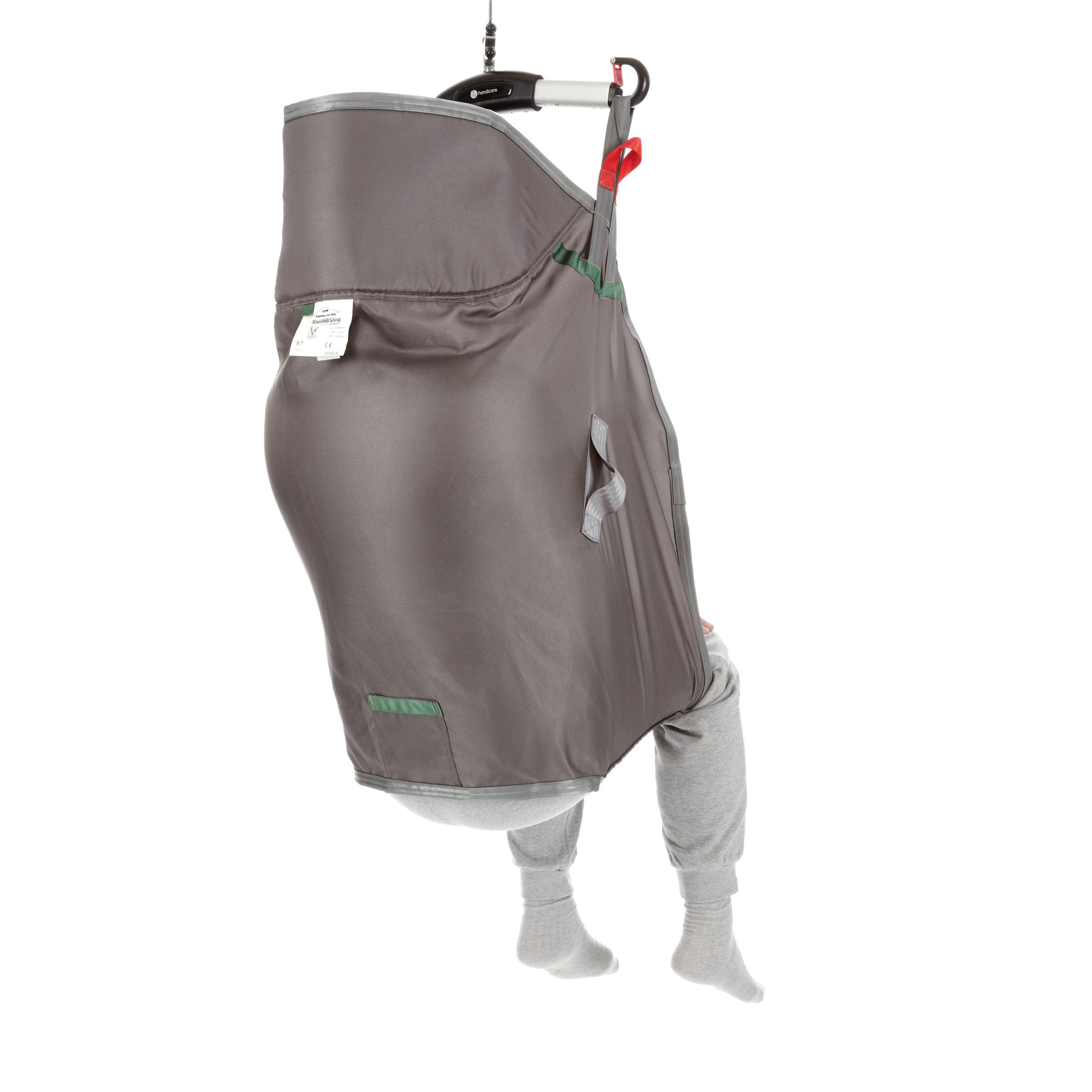

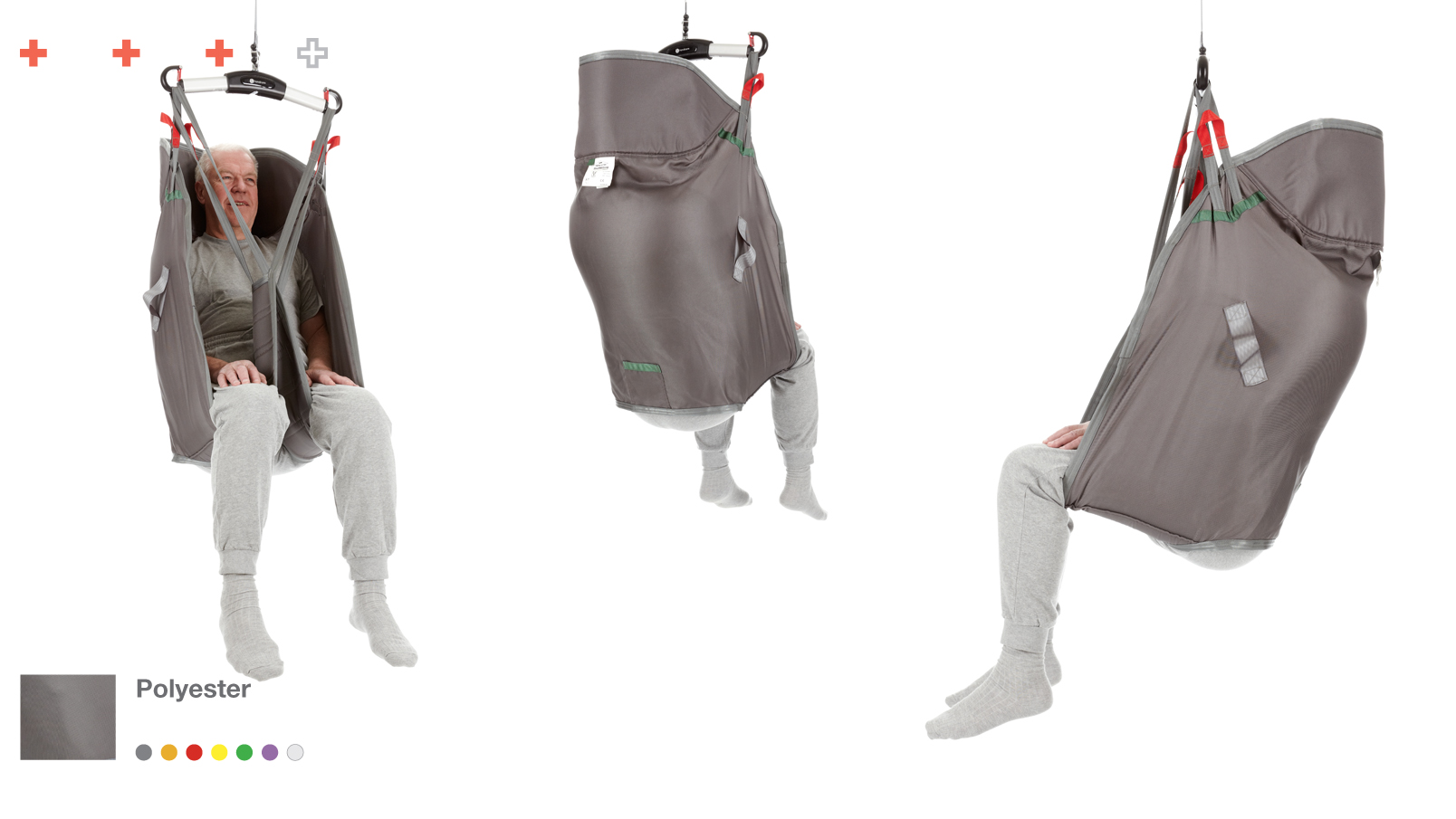

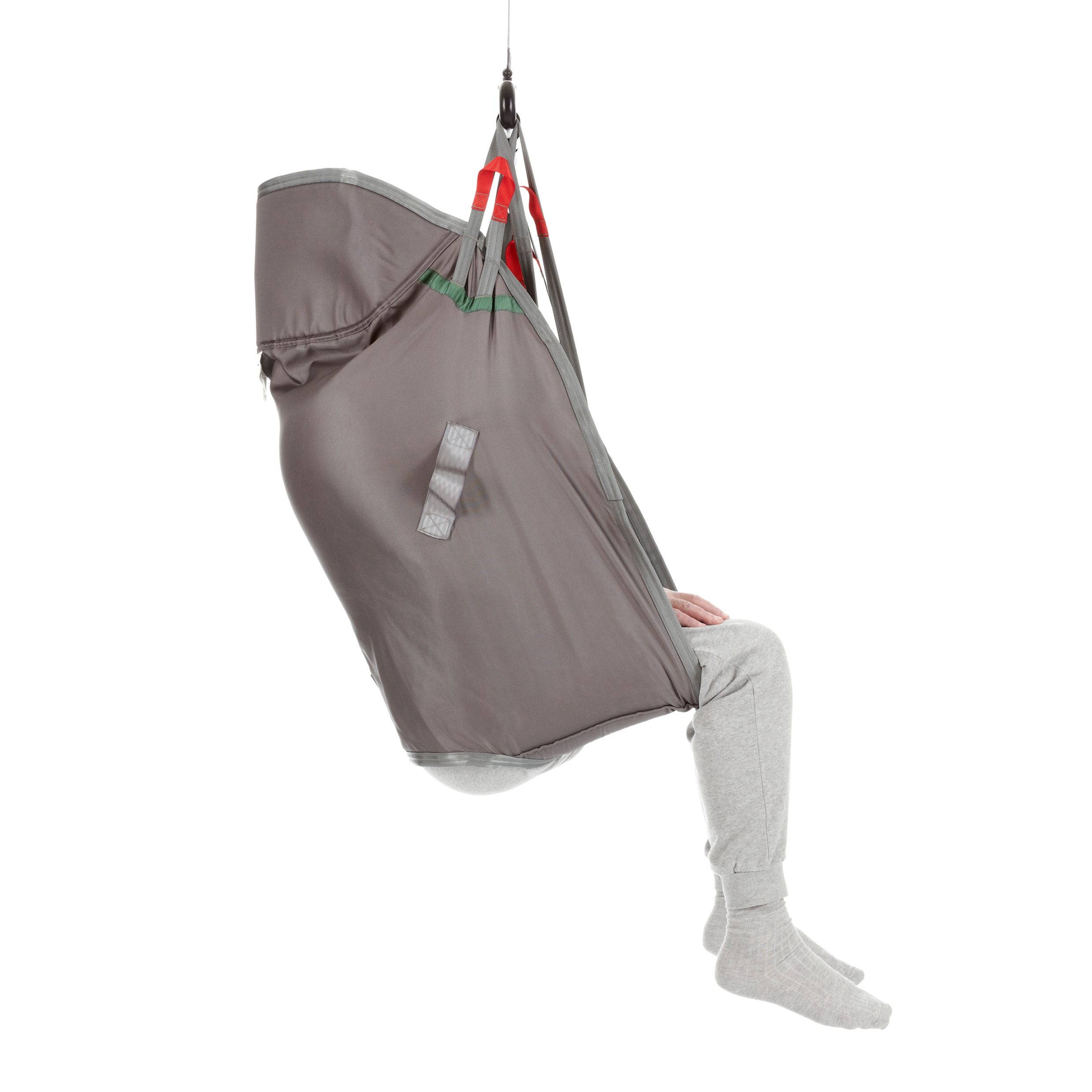

ShellHBSling userVideoShellHBSling userShellHBSling userShellHBSLing ShellHBSling Unique bowl shape with adjustable head support ShellHBSling is designed for use in most common lifting situations, e.g. for sitting transfers between bed and wheelchair, and when the user needs extra head support. ShellHBSling can also be used for lifting from a recumbent position on the floor. The bowl-shaped sling follows the shape of the body and enables an upright seated posture that is easily regulated with the help of alternative lift loops. The adjustable head support gives each user perfect support for the head. ShellHBSling is available in several sizes, all for users weighing max 300 kg/660 lbs. Divided leg supports; easy for the caregiver to apply and remove, the user does not sit on the lifting sling High back; the user is supported from the tailbone up over the head and under the legs An upright seated posture can be regulated via two alternative lift loops at the back and on the leg supports ShellHBSling is bowl-shaped and provides superb, adjustable support for the head Pocket at lower edge for easier application SWL 300 kg/660 lbs Accessories for individual adaptation Accessories for individual adaptation of the lifting sling are available. Click “Accessories” hereunder for more information. Application of lifting slings according to SystemRoMedic™ For more information about SystemRoMedic™ lifting slings and our tools for easier choosing, application, maintenance and security testing, go to the “About lifting slings” section which is available in the left hand side navigation field. Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas From Bed To Wheelchair Positioning In Chair Up From The Floor Model specificationArt. no.40700002407000034070000440700006407000074070000840700009NameShellHBSlingShellHBSlingShellHBSlingShellHBSlingShellHBSlingShellHBSlingShellHBSlingDescriptionSizeXXSXSSMLXLXXLRecommended user weight10-30 kg20-35 kg30-55 kg50-90 kg80-120 kg110-160 kg150-210 kgSling seat measurement17 cm25 cm35 cm40 cm45 cm55 cm65 cmSling overall height80 cm85 cm94 cm97 cm98 cm100 cm100 cmSWL300 kg300 kg300 kg300 kg300 kg300 kg300 kgUnits1111111Unit1111111Material(s)PolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyester DocumentsDocument nameTypeSize User manual ShellHBSling EN INT 1 MB Gebrauchsanweisung ShellHBSling DE 1 MB Manual ShellHBSling FR 1 MB Handleiding ShellHBSling NL 1 MB Manual ShellHBSling IT 1 MB Bruksanvisning ShellHBSling SE 1 MB Manual ShellHBSling NO 1 MB Manual ShellHBSling DK 1 MB Trial Fitting Protocol ShellHBSling EN 292 KB Utprovningsprotokoll ShellHBSling SE 302 KB
