Handicare Ergogrip Corner Combination 1

Handicare Ergogrip Corner Combination 2

Handicare Ergogrip Corner Combination 3

2611 015

2611 018

2611 019

Ergogrip corner and combination grab rails

The perfect solution for the shower

Model specification

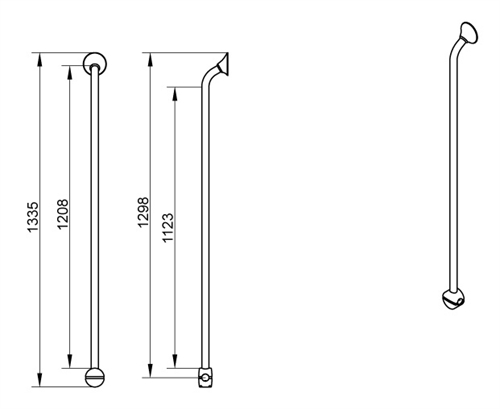

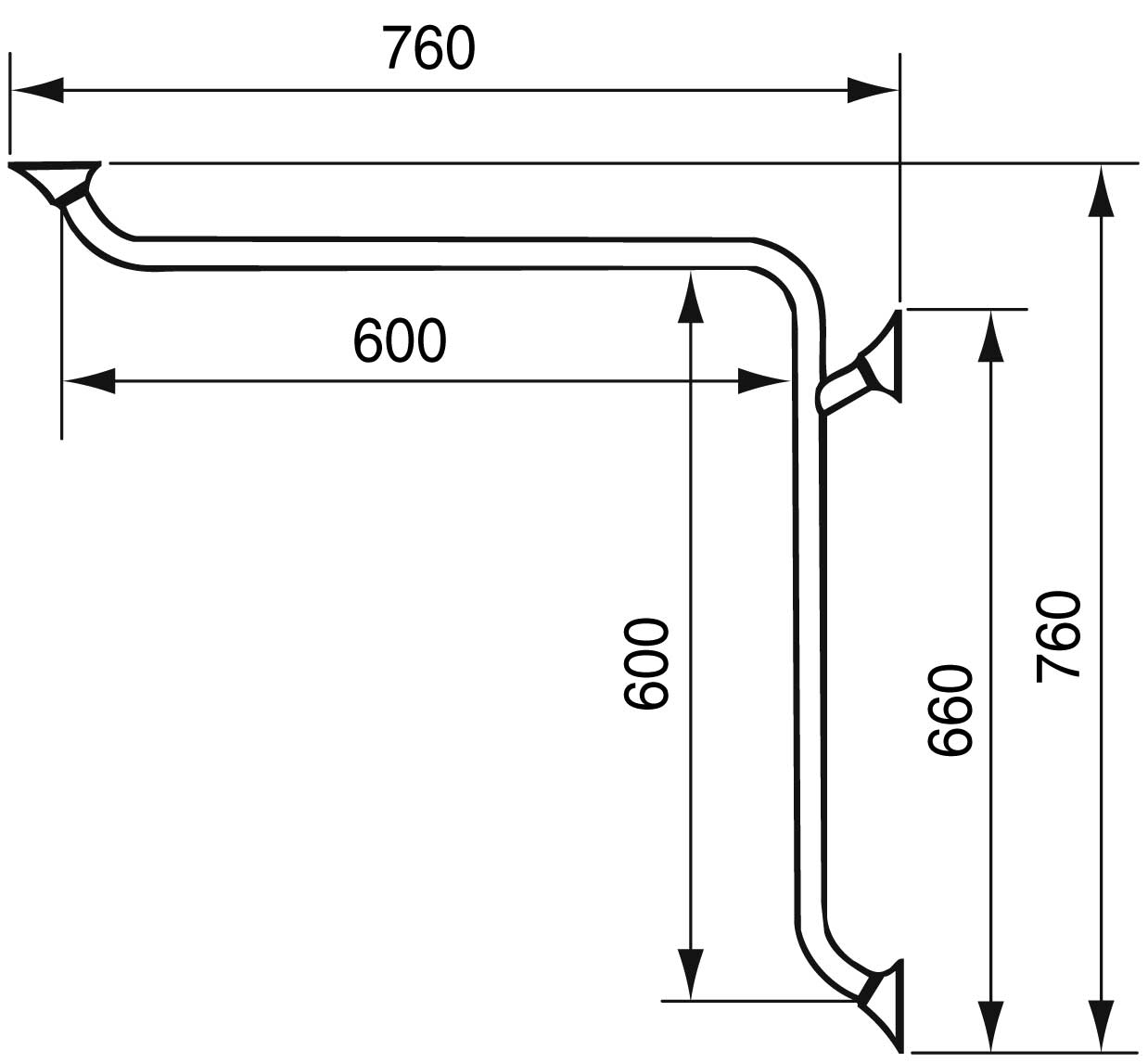

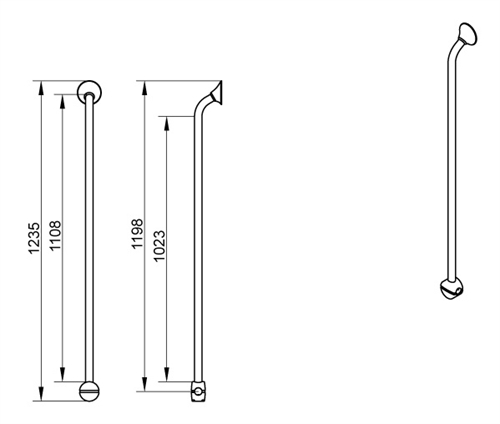

Art. no.	LI2611.015x-xx	LI2611.018x-xx	LI2611.019x-xx	LI2611.025x-xx
Name	Ergogrip corner and combination grab rails	Ergogrip corner and combination grab rails	Ergogrip corner and combination grab rails	Ergogrip corner and combination grab rails
Description	Horizontal grab rail for two walls, grip length 600 x 600 mm			Horizontal grab rail for two walls, grip length 600 x 900 mm
Total length	760x760 mm	1235 mm	1335 mm	760x1060 mm
Tube diameter	28 mm	28 mm	28 mm	28 mm
Distance tube-wall	75 mm	75 mm	75 mm	75 mm
Number of flanges	3	1	1	3
Max. user weight	150 kg	150 kg	150 kg	150 kg

Documents

Document name	Type	Size
User manual Ergogrip grab rails, 3 flanges (multilingual)		2 MB
User manual Ergogrip combination rail S/L (multilingual)		819 KB
Technical data sheet EN		763 KB
Technical mounting advice EN INT		96 KB
Ergonomic mounting advice EN INT		127 KB
Care instructions EN INT		110 KB
Product catalogue LinidoSolutions EN INT		11 MB
