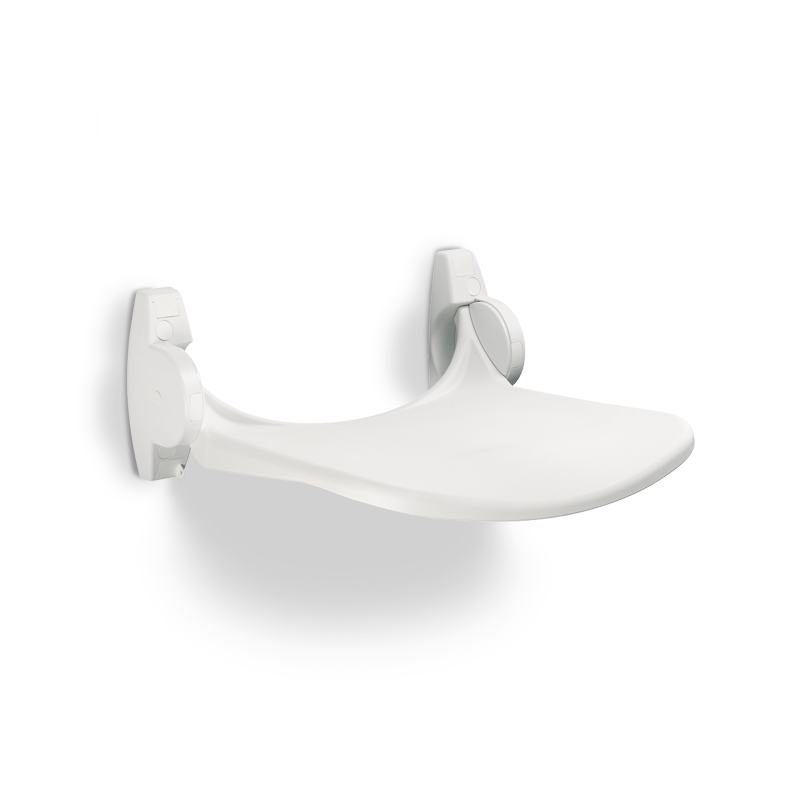

Ergonomic Shower Seats 1

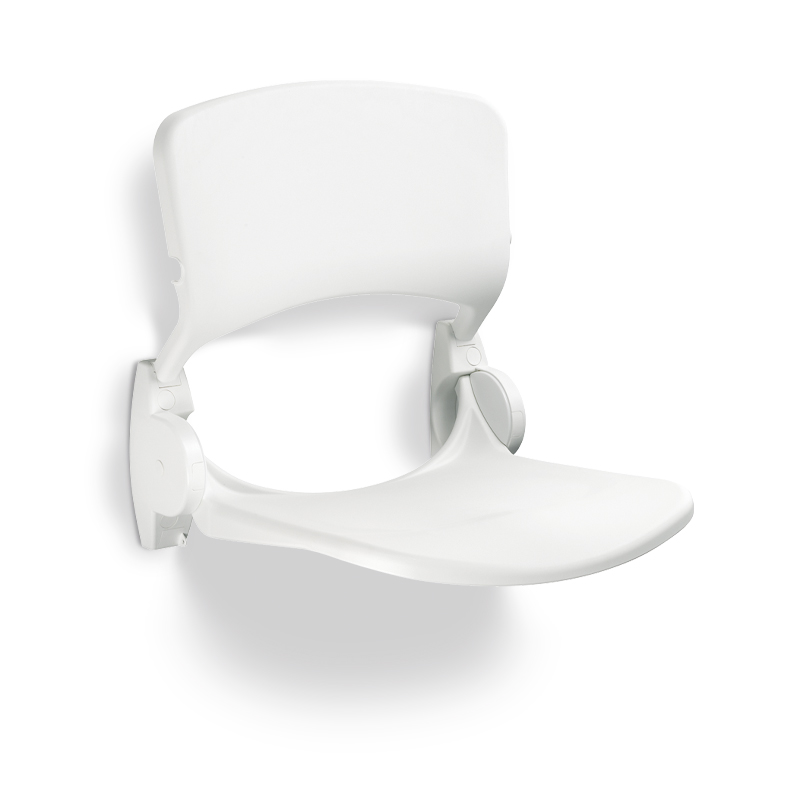

Ergonomic Shower Seats 2

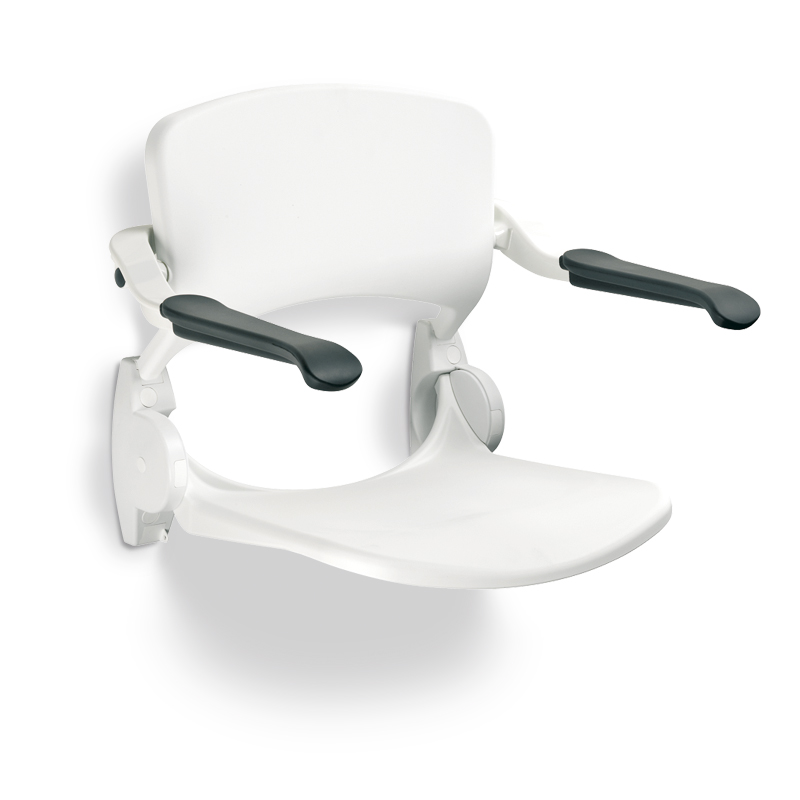

Ergonomic Shower Seats 3

Handicare Shower Seat Utan Rygg Arm

2201 200

2202 200

2203 200

Douchezitting 2

LI2203.2006-11 en LI2611.0901-11 en LI2630.2006-11 en LI2637.0022-11 omgeving.jpg

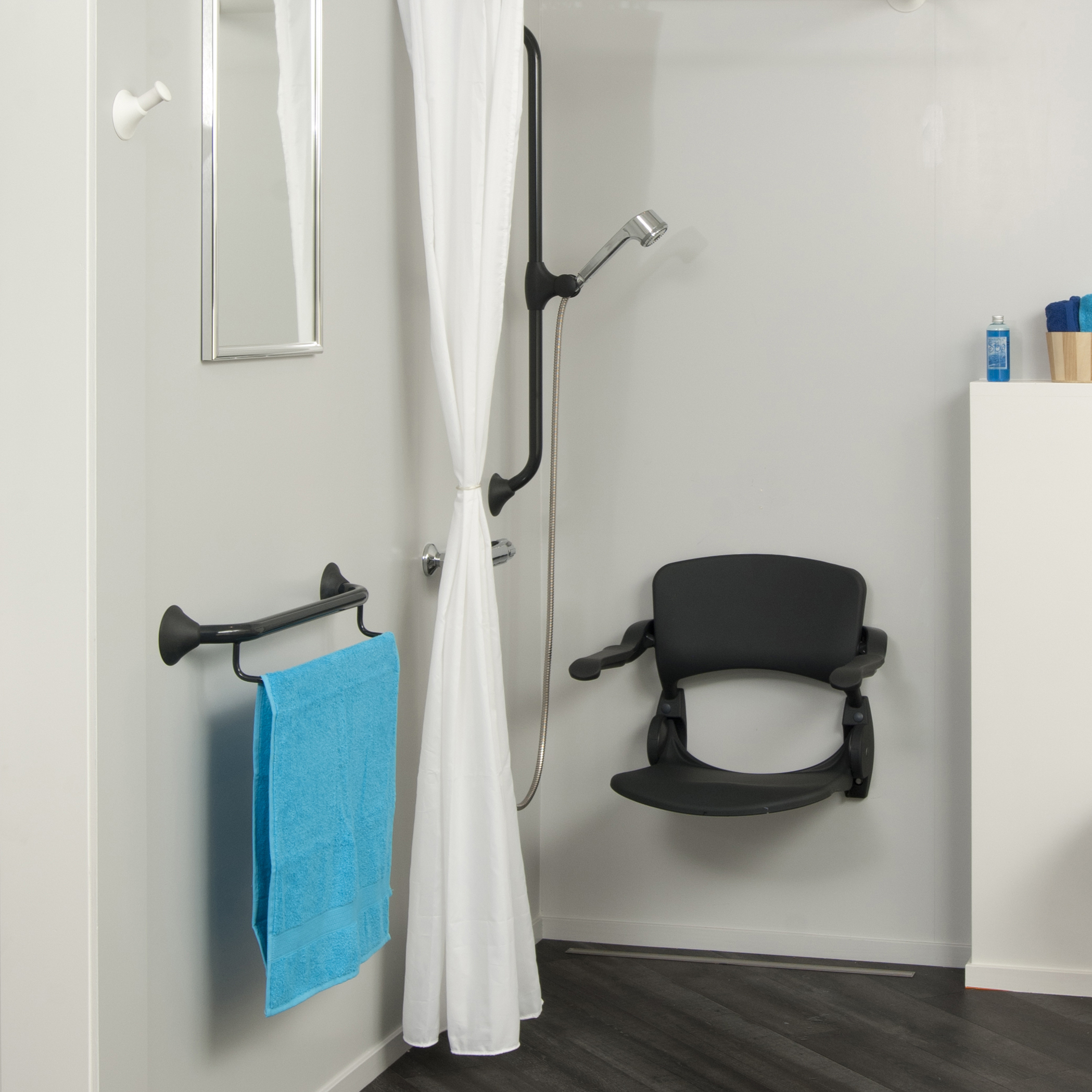

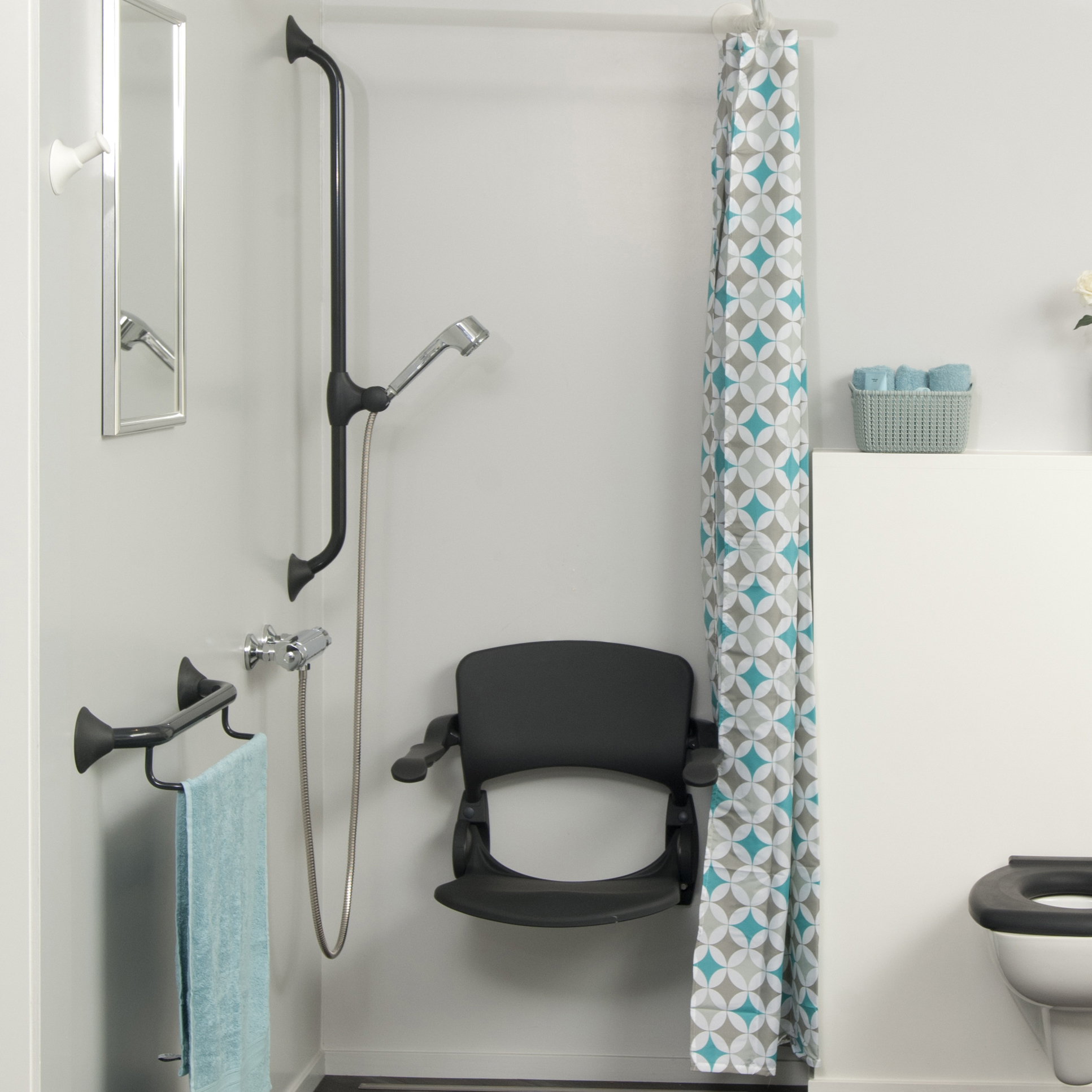

Ergenomic Shower Seat in bathroom

Ergonomic shower seats

Safe and ergonomic support and an active sitting posture

Model specification

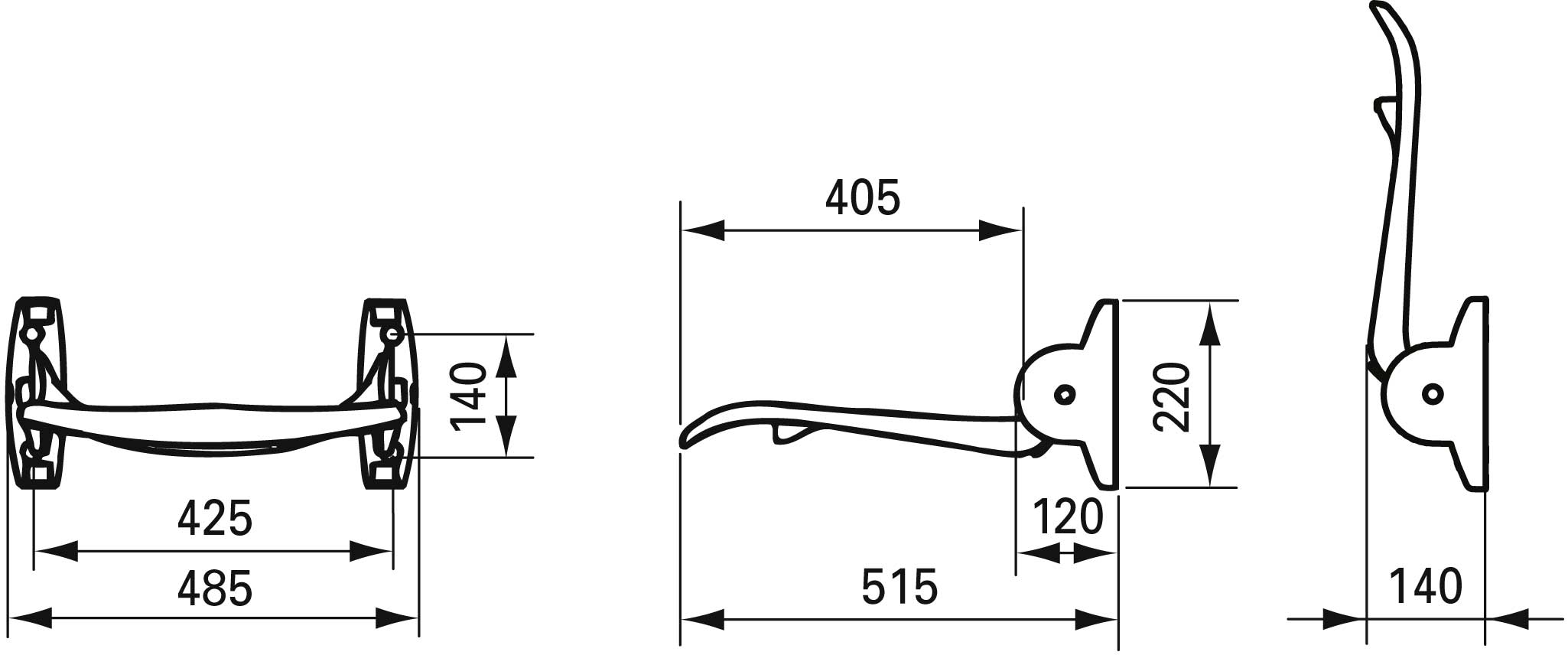

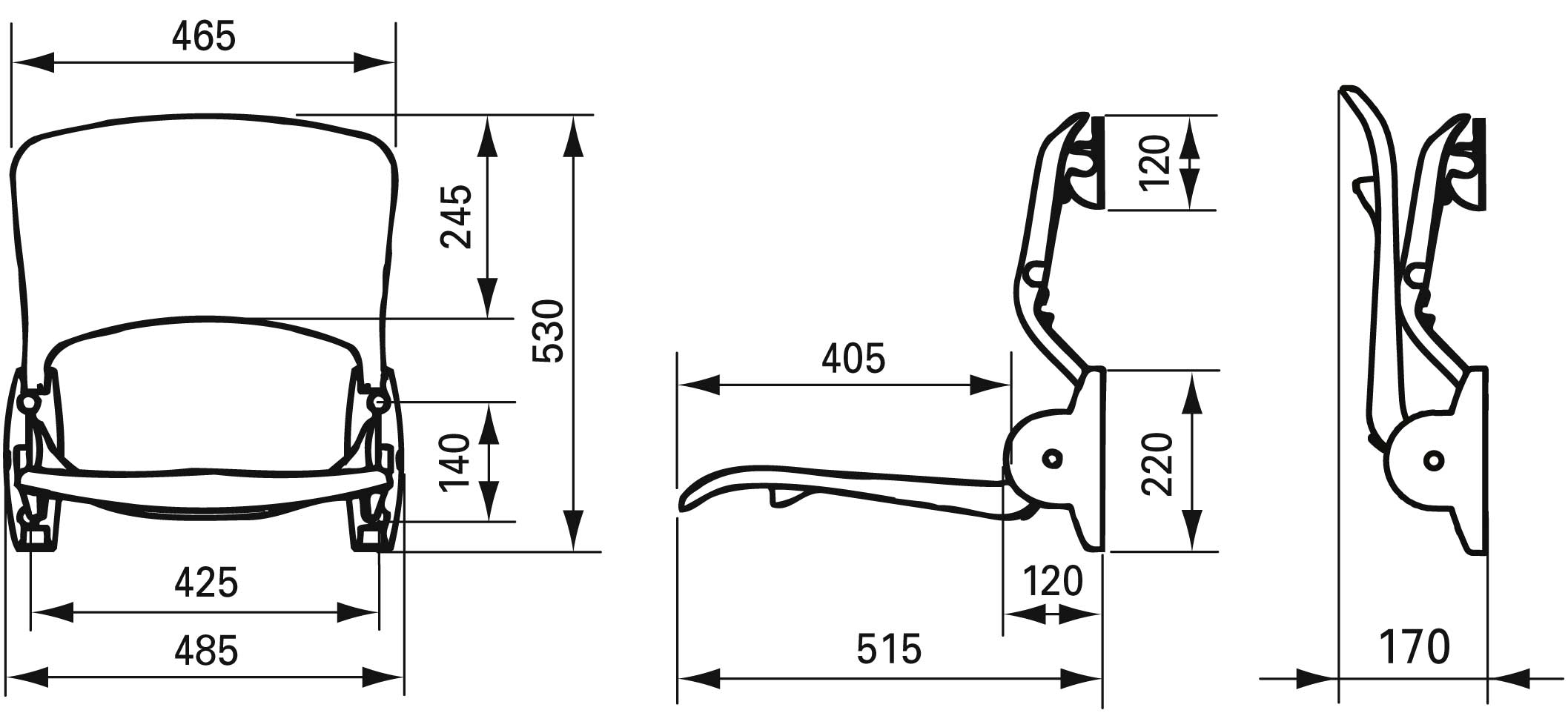

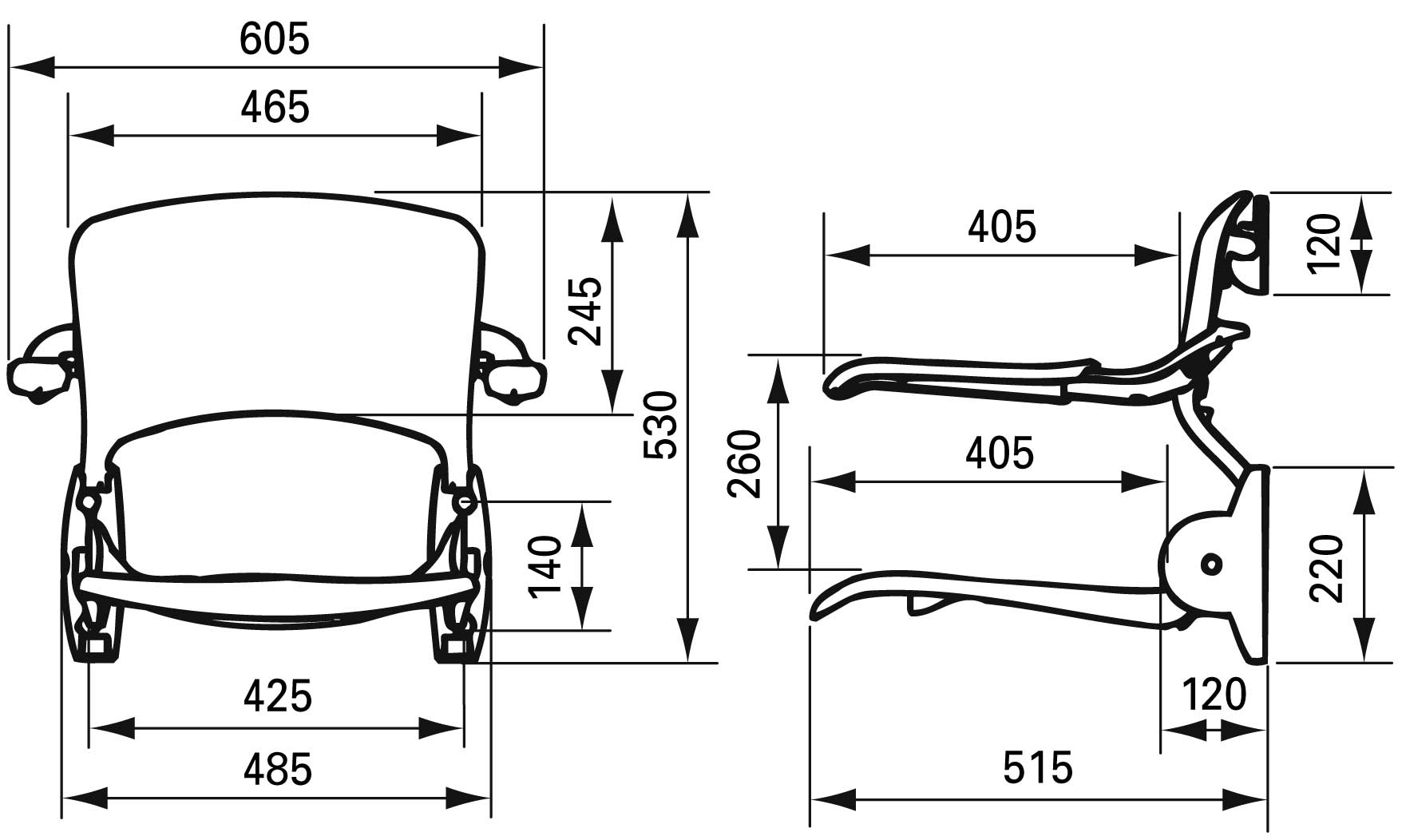

Art. no.	LI2201.2006-xx	LI2202.2006-xx	LI2203.2006-xx
Name	Ergonomic shower seats	Ergonomic shower seats	Ergonomic shower seats
Description	Including drill jig and Cover set LI2801.0000-xx	With backrest, including drill jig and Cover set LI2803.0000-xx	With backrest and armrests, including drill jig and Cover set LI2803.0000-xx
Total depth	515 mm	515 mm	515 mm
Total width	485 mm	485 mm	605 mm
Total height	220 mm	530 mm	530 mm
Seat width	425 mm	425 mm	425 mm
Seat depth	405 mm	405 mm	405 mm
Max. user weight	150 kg	150 kg	150 kg
Max. load per armrest	75 kg	75 kg	75 kg
Backrest width	465 mm	465 mm
Armrest length	405 mm
Material(s)	Plastic (glass fibre reinforced nylon)	Plastic (glass fibre reinforced nylon)	Plastic (glass fibre reinforced nylon)

Documents

Document name	Type	Size
Drill Jig Ergonomic Shower Seats		3 MB
Technical Drawings Ergonomic Shower Seats SE		300 KB
User manual Ergonomic shower seats (multilingual)		1 MB
Technical mounting advice EN INT		96 KB
Ergonomic mounting advice EN INT		127 KB
Care instructions EN INT		110 KB
Product catalogue LinidoSolutions EN INT		11 MB
