Handicare Short Shower Seat

Handicare Short Shower Seats 2

2203 001

Short shower seats

Ideal when space is limited

Model specification
Art. no.LI2201.001x-xxLI2203.001x-xx
NameShort shower seatsShort shower seats
DescriptionShower seat with reduced seat depth, 375 mm from the wall, incl. drill jig and Insulation set M8 x 4Shower seat with reduced seat depth, 445 mm from the wall, with backrest and armrests, incl. drill jig and Insulation set M8 x 5
Total width490 mm625 mm
Total height165 mm665 mm
Seat width425 mm425 mm
Seat depth315 mm315 mm
Max. user weight150 kg150 kg
Max. load per armrest75 kg75 kg
Total depth375 mm445 mm
Backrest height525 mm
Backrest width450 mm
Armrest length415 mm
Documents
Document name Type Size

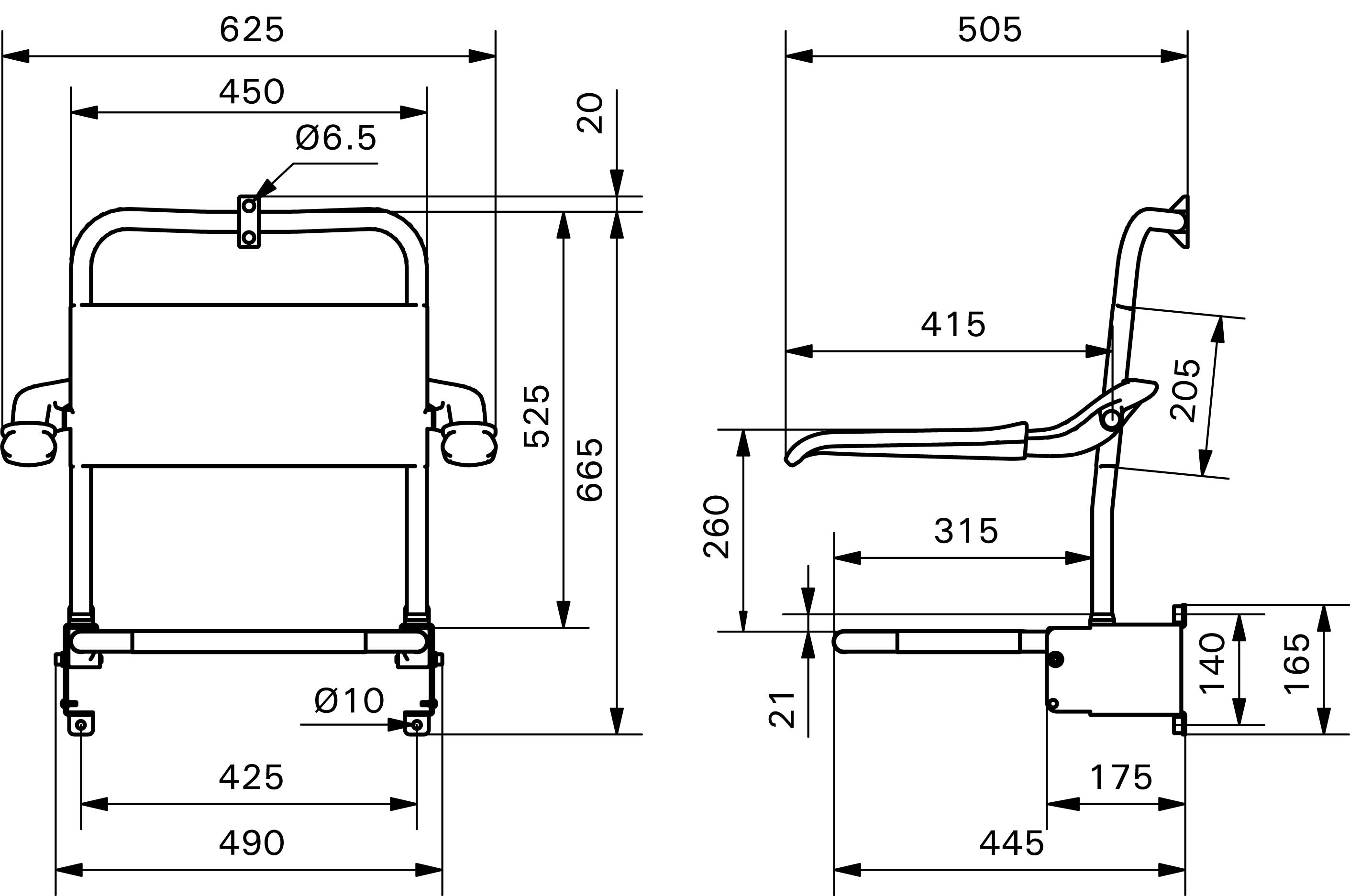

Technical Drawings Short Shower Seats EN 268 KB
User manual Short shower seats (multilingual) 1 MB
Technical mounting advice EN INT 96 KB
Ergonomic mounting advice EN INT 127 KB
Care instructions EN INT 110 KB
Product catalogue LinidoSolutions EN INT 11 MB
